GraphicalChoiceWidget

class GraphicalChoiceWidget(parent=None, designMode=False, choices=None, pixmaps=None, iconSize=128, defaultPixmap=None, horizontalScrollBarPolicy=0, verticalScrollBarPolicy=0)

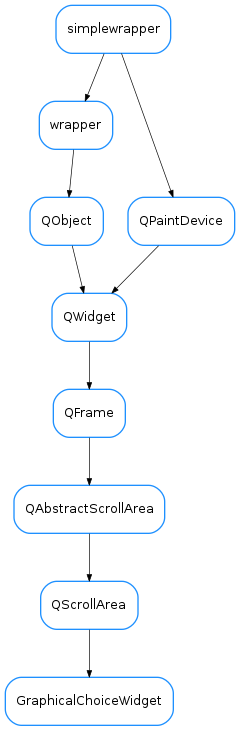

Bases: PyQt4.QtGui.QScrollArea

A widget that presents a 2D grid of buttons

choiceMade

getChosen()

returns the choice :rtype: str :return:

classmethod getQtDesignerPluginInfo()

Returns pertinent information in order to be able to build a valid QtDesigner widget plugin

The dictionary returned by this method should contain at least the following keys and values: - ‘module’ : a string representing the full python module name (ex.: ‘taurus.qt.qtgui.base’) - ‘icon’ : a string representing valid resource icon (ex.: ‘designer:combobox.png’) - ‘container’ : a bool telling if this widget is a container widget or not.

This default implementation returns the following dictionary:

{ 'group'     : 'Taurus Widgets',
  'icon'      : 'logos:taurus.png',
  'container' : False }

Return type:dict Returns:a map with pertinent designer information

onClick()

slot called when a button is clicked

setChoice(row, col, text, pixmap=None, tooltip=None)

sets the option for a given row,column coordinate in the grid

Parameters:

• row (int) – row in the grid for this option
• col (int) – column in the grid for this option
• text (str) – name for this option
• pixmap (QPixmap or None) – If no valid pixmap is provided for a given choice, the default one will be used
• tooltip (str) – tooltip for this option (if None given, the text is used)

setChoices(choices, pixmaps=None)

sets the available options

Parameters:

• choices (list <list>) – a list of lists of strings to be used as choices names. The (possibly sparse) 2D array defined by the nested lists will be used to present the choices in a grid. The choice names will be used as keys for pixmaps
• pixmaps (dict <str, QPixmap>) – dictionary mapping the choices text to corresponding pixmap. If no valid pixmap is provided for a given choice, a default pixmap will be used
